SWA 150/300

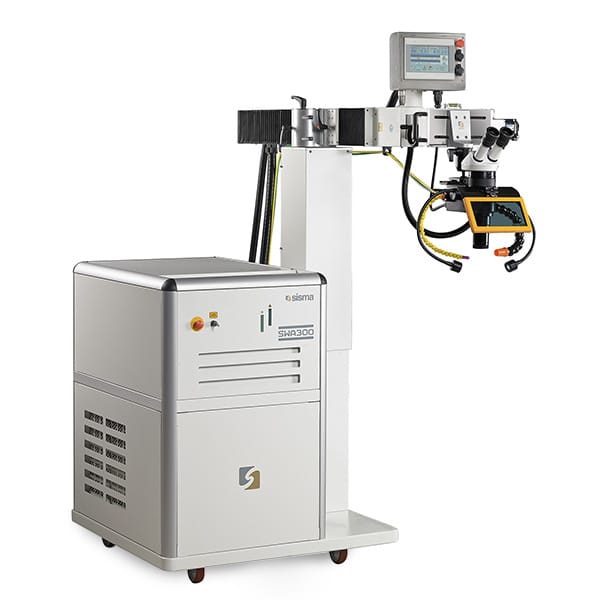

SWA 150/300, semi-automatic laser welding and mould repair system

Reliability
SWA is designed to deal with long work sessions on a daily basis without losing precision and quality of the result.

Advanced software
Working parameters are managed through an advanced software, which allows to perform complex operations in an easy and intuitive way: circumference welding, working on inclined surfaces, filling and the Overlap function for extremely regular welding seams.

Flexibility
Flexible positioning and rotation of the welding head provides tremendous flexibility, making SWA adaptable to every need. This feature allows to perform maintenance also on irregular-shaped moulds, even on the inner parts.

Contact us for more information.



TECHNICAL DETAILS

Model	SWA 150	SWA 300
Average power	150 W	300 W
Peak power	10,5 kW	12 kW
Pulse energy	75 J	150 J
Pulse frequency	0 - 100 Hz	0 - 100 Hz
Pulse duration	0,3 - 25 ms	0,3 - 25 ms
Spot diameter	0,6 - 2 mm	0,6 - 2 mm
Laser beam transport	Fiber-coupled	Fiber-coupled
Focusing optics	120 mm	120 mm
Vision system	Leica binocular	Leica binocular
Moving speed	0 - 20 mm/s	0 - 20 mm/s
X axis stroke	300 mm	300 mm
Y axis stroke	150 mm	150 mm
Z axis stroke	500 mm	500 mm
Cooling	Air / aria	Air / aria
Power supply	230 V 50/60 Hz 1ph - 1 kWand 400 V 50/60 Hz 3ph - 3,5 kW	230V 50/60Hz 1ph 1Kw and 400 V 50/60Hz 3ph 8 Kw
Dimensions W x L x H	1950 mm x 1100 mm x 1610 mm	2100 mm x 1200 mm x 1610 mm
Net weight	270 kg	310 kg
