MYSINT100

MYSINT100, 3D selective laser fusion printer for metal powder.

Productive
Thanks to the patented Tilting Coater, MYSINT100 offers reduced re-coating times, increasing the production capacity.

Versatile
Each machining parameter and the entire production strategy are fully customizable to adapt to every specific need.

Reliable
The stable and uniform flow of inert gases ensures the best fusion stability minimizing consumption (patented system).

Technical data	Value
Building volume	Ø 100 mm x 100 mm
Laser source	Fiber Laser 200 W
Precision optics	Quartz F-Theta Lens
Laser spot diameter	55 μm
Typical layer thickness	20 μm - 40 μm (adjustable/regolabile)
Power supply	220-240 V 1ph - 50/60 Hz
Max power absorbed	1,53 kW
Inert gas	Nitrogen, Argon - Azoto, Argon
Inert gas supply	6 mm / 2.5 ÷ 5bar @ 35 L/min
Inert gas consumption	<0,3 L/min @ 0,5% O2
O2 concentration	0,3%
Machine dimensions	1390 mm x 777 mm x 1600 mm (LxWxH)
Net weight	650 kg

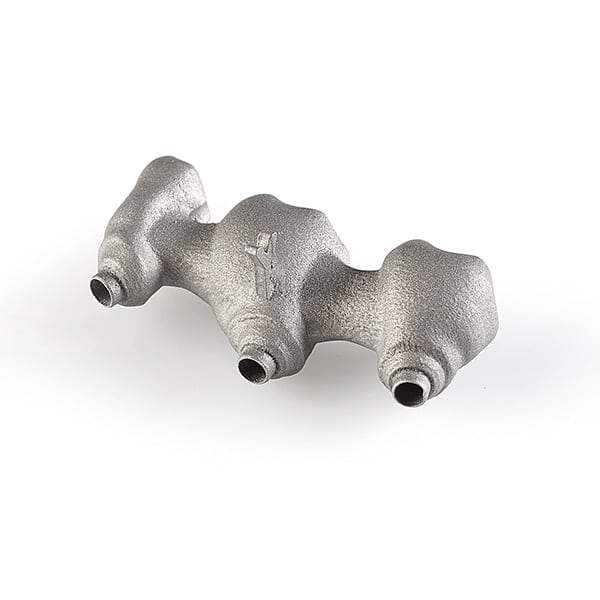

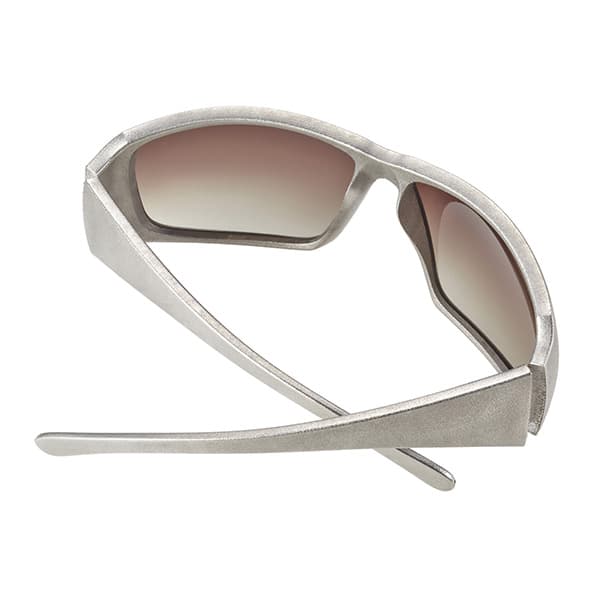

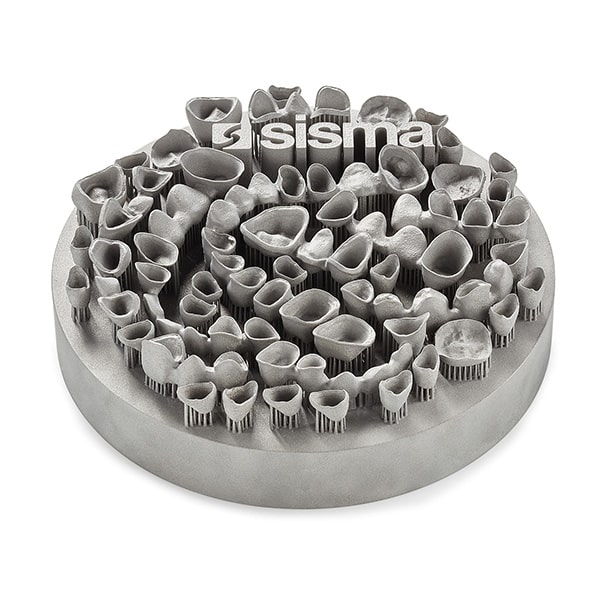

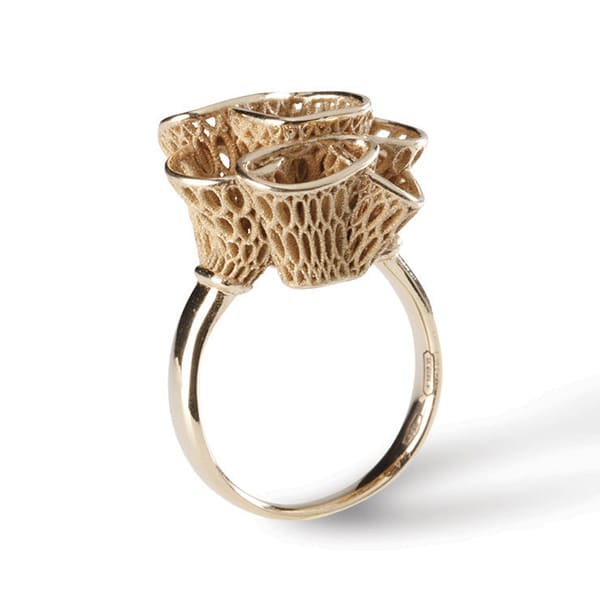

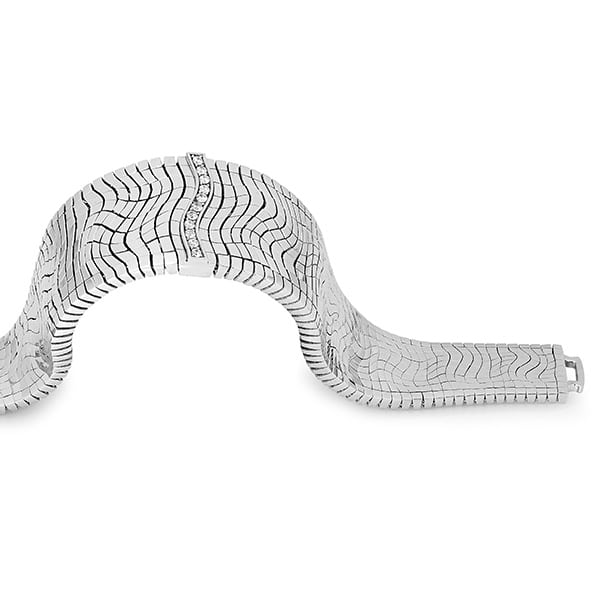

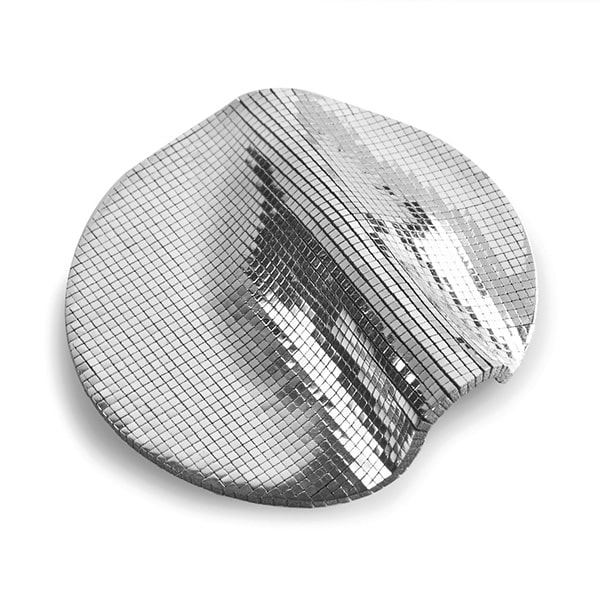

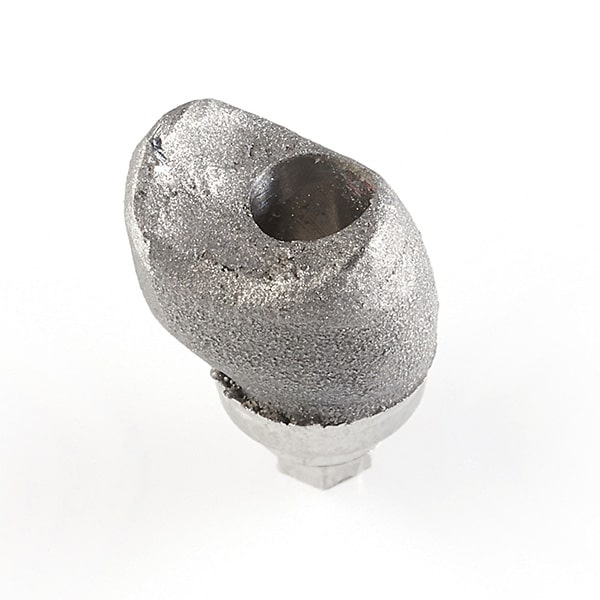

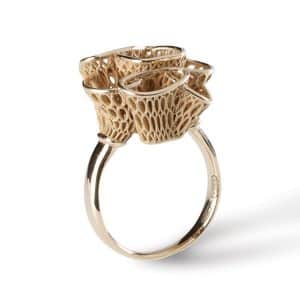

Materials	Cobalt Chrome, Precious metals, Bronze,Steel alloys, Nickel alloys, Pure copper,Copper alloys
