LM-B

sisma / Laser systems

LM-B, semi-automatic laser welding and mould repair system.

Stable
LM-B incorporates the Smart Spot technology for a repeatable welding process ensuring a wide depth of field and a stable laser firing already from the first pulses.

Comfortable
The new ergonomic design and low noise level ensure total operator comfort. The ECO function deactivates specific system components during periods of inactivity thereby ensuring reduced consumption.

Digitally advanced
Precise consumables monitoring, high pulse stability and longer lamp life.

Contact us for more information.

TECHNICAL DETAILS

Technical DataLM-B 180LM-B 210
Source typeNd:YAG (flash lamp)Nd:YAG (flash lamp)
Wavelenght1064 mm1064 mm
Average laser power 80W85W
Peak laser power (max)9kW10.5 kW
Max pulse energy 180 J (at 20 ms)210 J (at 20 ms)
Laser pulse duration0,3-25 ms0,3-25 ms
Laser spot diameter -0,2÷2mm (0,1 mm optional)0,2÷2mm (0,1mm optional)
X-Y axes stroke150 x 150 mm150 x 150 mm
Z axis stroke175 mm175 mm
Max load weight25 kg25 kg
Max mould size300x300 x270 mm300x300 x270 mm
Power supply1ph 230V±10% 50/60 Hz1ph 230V±10% 50/60 Hz
Dimensions (WxDxH)698 x 801 x 1465 mm698 x 801 x 1465 mm
Weight200 kg200 kg

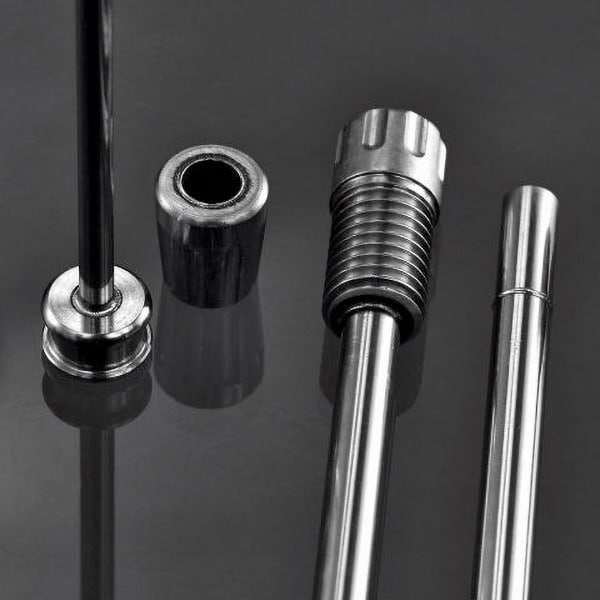

Applications LM-B
