BIG SMARK

BIG SMARK. laser marking and engraving system with base.

Versatile
The advanced features of the laser source allow to carry out engraving, marking and cutting operations in line with the highest technical standards. BIG SMARK can be fitted with all SISMA accessories, with the coaxial vision system (CVS) and with the Pattern Matching software.

Practical
The 500 mm x 500 mm working chamber (maximum piece height 530 mm with F100 focal length) is open on three sides to facilitate access.

Digitaly advanced
Entirely developed by SISMA, the integrated software is the ideal solution for file management and parameter definition, even for complex machining.



TECHNICAL DETAILS

Technical data	200F EP	500F EP	700F EP	3000F	7000F	1000F EP
Active material	Yb	Yb	Yb	Yb	Yb	Yb
Average power	1059 - 1064 nm	1059 - 1064 nm	1059 - 1064 nm	1080 - 1095 nm	1080 - 1095 nm	1059 - 1064 nm
Wave length	20 W	50 W	70 W	30 W	55 W	100 W
Working frequency	1÷1000 kHz	1÷1000 kHz	1÷1000 kHz	30÷80 kHz	70÷140 kHz	1÷4166 kHz
Impulse duration	6-500 ns	6-500 ns	9-500 ns	50-200 ns	50-200 ns	6-2020 ns
Peak power	> 10 kW	> 10 kW	> 10 kW	8,5 kW	> 10 kW	14 kW
Pulse energy	0,03 - 1 mJ	0,03 - 1 mJ	0,03 - 1 mJ	1 mJ	0,8 mJ	0,03 - 1,3 mJ
Beam quality	< 1,6	< 1,6	< 1,6	< 1,6	< 1,6	< 1,6
Cooling system	Air	Air	Air	Air	Air	Air
Z axes stroke	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm
Z axes precision	0,05 mm	0,05 mm	0,05 mm	0,05 mm	0,05 mm	0,05 mm
Repeatability	0,02 mm	0,02 mm	0,02 mm	0,02 mm	0,02 mm	0,02 mm
Max piece weight	50 kg	50 kg	50 kg	50 kg	50 kg	50 kg
Power supply	230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres	230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres	230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres	230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres	230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres	230 V ± 15% 50/60 Hz 1ph CEE 16A socket/pres
Power absorption	0,8 kW	0,8 kW	0,8 kW	0,8 kW	0,8 kW	0,8 kW
Dimensions (LxDxH)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 with open door)
Weight	240 kg	240 kg	240 kg	240 kg	240 kg	240 kg

BIG SMARK

BIG SMARK. laser marking and engraving system with base.

TECHNICAL DETAILS

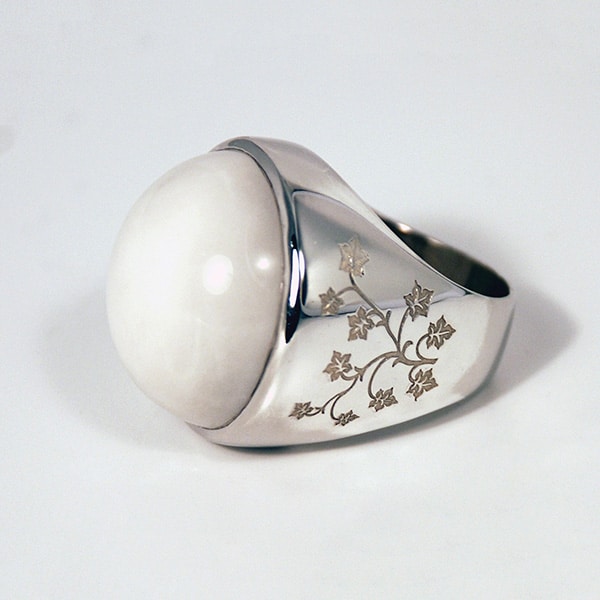

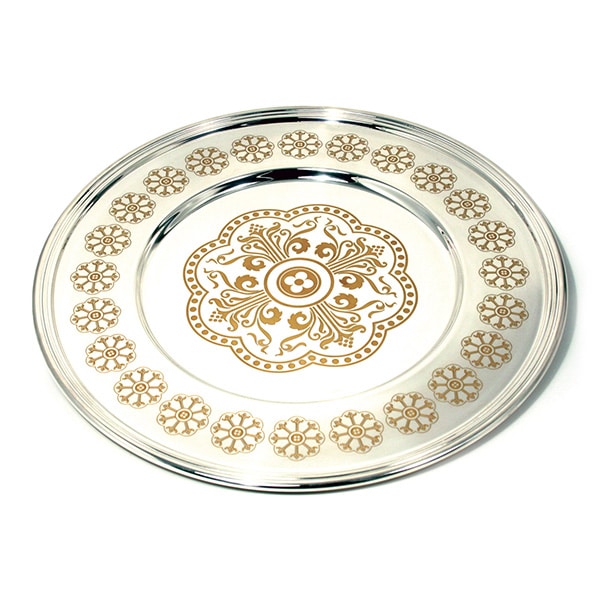

Applications BIG SMARK
